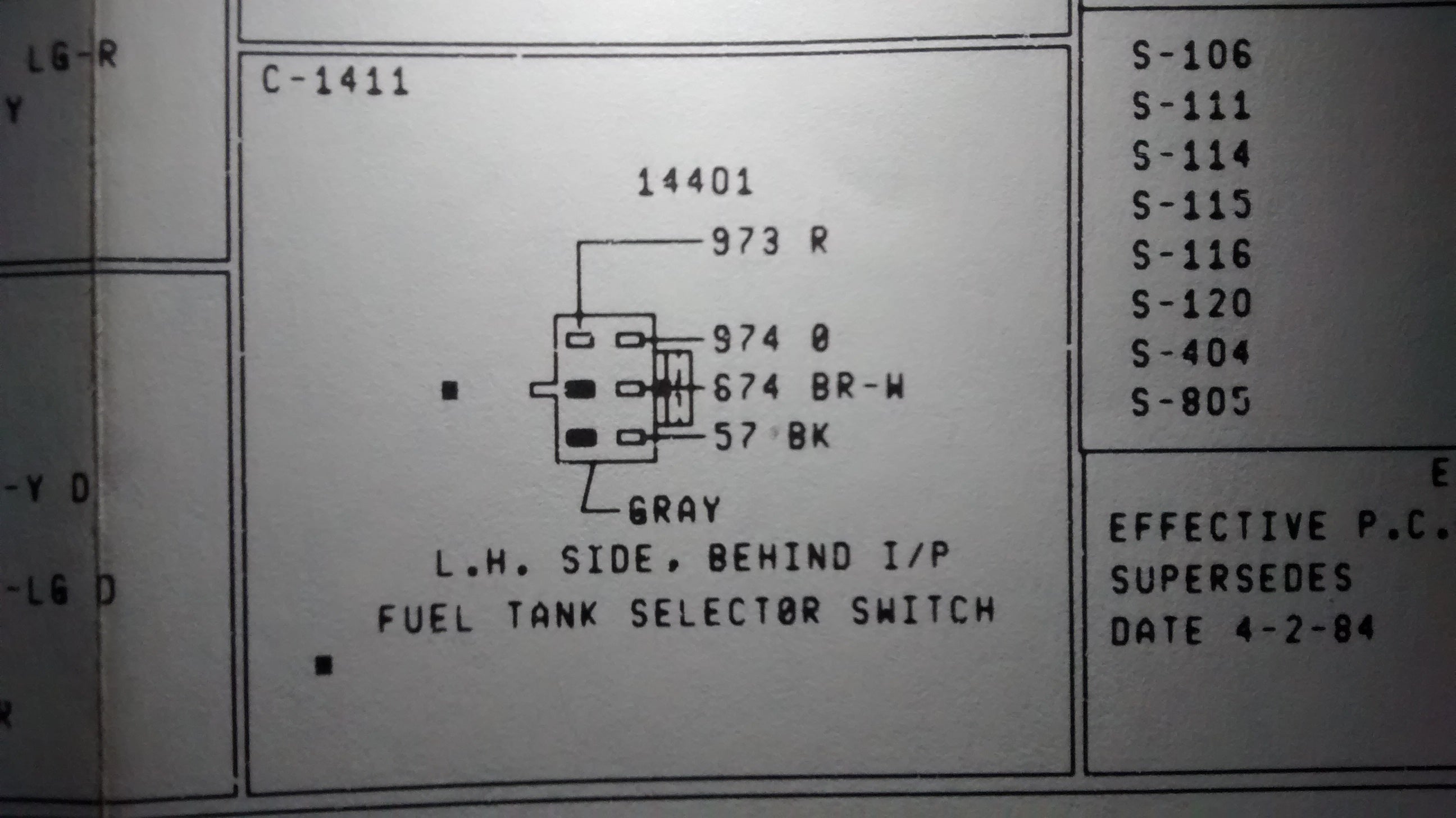

Fuel tank selector valve wiring diagram? - Ford Truck ... Front tank sending unit: Dark blue-yellow. Rear tank sending unit: Yellow-light blue. Fuel gauge: Yellow-white (or white-yellow) Switch wires: outer most (closest to edge of plug): Red. second wire in (next to red): Brown-white. Switch on front tank: Red wire. Switch on rear tank: Brown-white wire (i think) Pollak Fuel Selector Valve Wiring Diagram The Motorized Fuel Selector Valve is intended to operate in a dual fuel tank Refer to attached schematic for electrical wire routing and fuel line connections. The pollak selector valve is intended for use only in fuel systems operating the orintation betwwen the switch's key and the electrical connections. Valves, Electrical Fuel Tank Selector.

Help with dual tank selector valve wiring - 1973-1987 ... Here is how the OEM valve and switch are wired up. One wire goes to the selector valve. The valve grounds through the body. When the solenoid is energized it sends/recieves fuel to one tank and when de-energized it sends/recieves fuel to the other tank. The sending unit wires goto the switch and then to the fuel guage. Like this:

Ford fuel tank selector valve wiring diagram

Tank Wiring Diagram Selector Valve Fuel Ford [Y13BUK] wiring diagram color code of the five wires for fuel selector valve making sure to keep the bends in the line as mild as possible, cut the fuel line to length and connect it to the fuel selector valve using a hose clamp come join the discussion about diesel performance, modifications, egr deletes, troubleshooting, lift kits, tires not for use in … Fuel Selector Switch - Wiring Diagram | ClassicBroncos.com ... yes, the bottom posts are for an electric valve. the middle is power, and one of the sides goes to the tank valve. I will have to check my diagram to see which one. In normal mode, no power to the electric tank valve, it should run off the main tank. with power it runs off the aux tank. If you need me to check my diagram let me know. Fuel Pump Wiring Diagram (1993-1995 F150, F250, F350) 1993, 1994, 1995 (4.9L, 5.0L, 5.8L) Ford F150, F250, and F350 with dual fuel tanks. This fuel pump circuit wiring diagram includes the following circuits: Fuel Pump Relay. Fuel Pump Inertia Switch. Fuel Tank Selector Switch. Front Tank Fuel Pump. Rear Tank Fuel Pump.

Ford fuel tank selector valve wiring diagram. Fuel System Wiring - Gary's Garagemahal (the Bullnose bible) This is my drawing showing the wiring of the 1996 fuel system, and below it are two pages from the 1996 EVTM that show the same thing, but in a less-concise fashion. 1996_fuel_system_wiring.png. File Size: 257 kb. File Type: png. Download File. If you want to look at the drawing more closely you are welcome to download the actual file, which ... Ford Fuel Tank Selector Switch Wiring Diagram Database ... In case there's a surface wire, it will be a water piping wire held in place by a attach on the same side since the fairly neutral terminal. The actual distinction between the wires will allow you to wire your home properly and avoid the high voltage of swapping the neutral and hot. 3. Three-inch guideline Can anyone help with the wiring for dual tanks | Snow ... I'll post both diagrams. You probably want to get the donor truck's metal crossover lines when you pull the tanks. This means you only need very short rubber lines to connect to the tanks. Some trucks use a 6 port fuel selenoid/switch and others use a 3 port. You have an HD truck, so it probably can use a 3 port. fuel selector switch - Bronco Zone I just installed a new aux. fuel tank and new sending unit in my 76 Bronco. I need the wiring diagram for the dash mounted fuel gauge selector switch. The factory plug was removed and it appears to only have 2 wires with crimp connectors going to the switch. OF COURSE I had to unplug both wires and now both gauges read empty.

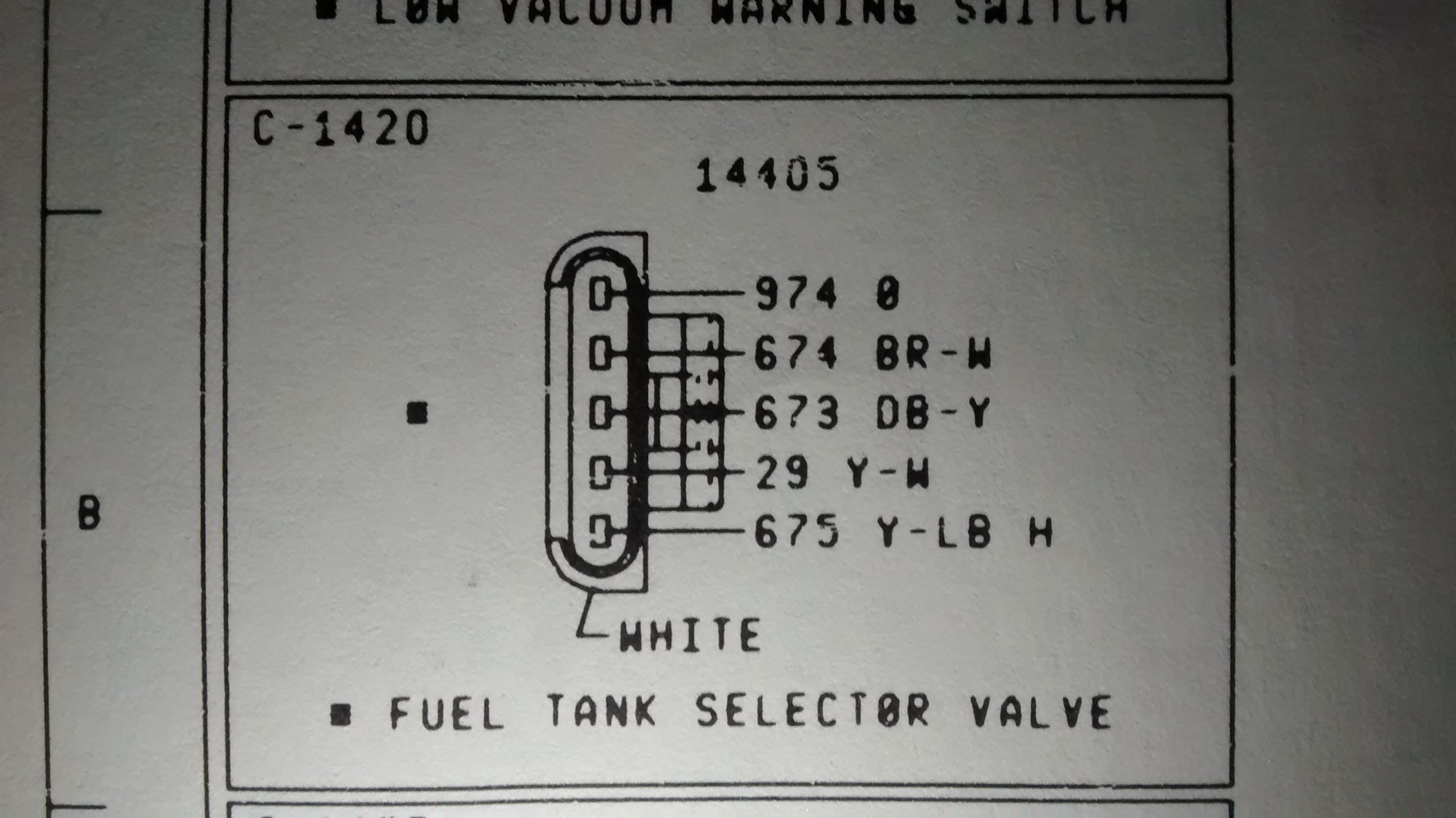

FUEL TANK SELECTOR VALVE wiring diagrams - The Diesel Stop The selector valve is easy to understand. There are 5 pins, labled 1 to 5, from bottom to top as you hold the valve in the upright position. Pins 1 and 2 are the motor. Applying +12 to pin 1, and ground to pin 2 makes the valve switch one way. Applying ground to pin 1 and +12V to pin 2 makes the valve switch the other way. Wiring Ford Valve Tank Diagram Selector Fuel [BSKYOV] Ford fuel pump wiring diagram. The factory plug was removed and it appears to only have 2 wires with crimp connectors going to the switch. 6C3Z9189A Fuel Tank Selector Valve Assembly,6 Ports 6C3Z-9189-A, F5TB-9F271-AA,6005966 fits for Ford F350 F250 Super Duty E150 E250 E350 F450 F550 Ranger, 6. Valve Train & Components. Ford Fuel Tank Selector Valve Wiring Diagram Pictures ... In case there's a surface wire, it will be a water piping wire held in place by a attach on the same side since the fairly neutral terminal. The actual distinction between the wires will allow you to wire your home properly and avoid the high voltage of swapping the neutral and hot. 3. Three-inch guideline ford wiring diagrams/schematics - Gary's Garagemahal (the ... Wiring Diagrams. ford wiring diagrams/schematics. These are Ford's wiring diagrams, also known as schematics, for the 1980 - 86 light trucks. They are PDF's and you can zoom in on them to a great extent in order to actually use them. Or, better yet, click the pop-out icon, shown to the right, and available at the upper right corner of the page.

Ford Tank Selector Fuel Wiring Diagram Valve [MCVQ0D] ECU Wiring Diagrams. unplug the wire on the valve (I'm assuming your valve has a single wire like Requires fuel tank selector valve connector and switch for proper installation. #12336291, U7001. Filter By: Pollak 42-151 3-Port Motorized Valve. 00 worth of petrol so i. Fairly common failure of the fuel tank switching valve. Fuel selector valve? | Diesel Truck Forum - Oilburners.net he said,,3 and 5 are the gauge wires.. front and rear.. What I believe he is saying is that #3 runs between the FSV and the front tank sender, #5 runs between the FSV and the rear tank sender, and #4 runs between the FSV and the dash gauge, carrying information from whichever tank sender is selected by the dash switch. Dec 22, 2012 #8 2 2stroke Fuel tank selector valve wiring diagram.1985 ford f250 ... Where would the fuel tank selector valve be located at in a 88 ford f250 be at? the selector is located between the two tanks and has 3 or 4 fuel lines connected to it as well as wires if its an electrical switch.some had a manual switch which is usually behind the front seat on the floor that switches the tanks from one to the other when turned. Ford Diagram Wiring Fuel Tank Selector Valve [TWS3CY] Ford Fuel Tank Selector Valve Wiring Diagram from easyautodiagnostics. The engi ne types may include 1. I have a 1987 F250 Ford Diesel 6. in need of a wiring diagram for a royal enfield 1939 250cc side valve model d. Your Ford F-250's fuel tank is no exception; in addition, it can rust both on the inside and on the outside. ...

7.🌲 obs Fuel selector valve block mod - YouTube

Fuel tank selector valve wiring. | Diesel Truck Forum ... Va. Put the dash wiring back together. Find the yellow/white wire coming from the fuel gauge in the dash. It should be under the truck at the old switching valve location. With the key in run, engine off, take this yellow/white wire and ground it to a good ground. The fuel gauge should swing to empty or full.

Fuel Tank Selector Valve Wiring - The 1947 - Present ...

Solution Included - Two Common Ford Fuel Tank Selector ... Solution 3: First, you have to check the rear pump is it running or not. The tank pump doesn't work through the switch valve. So, if it is no running, there is no option to switch. Second, you will unplug the frame of the pump and have to set the dash switch to the rear. Third, you have to turn the key to run the rear tank.

1985 F250 6.9L IDI tank selector valve wiring for harness ...

Tank Ford Selector Fuel Valve Wiring Diagram [V0JAM1] Can replace E3NN9002KB fuel tank if D8NN9A316KA sender, E2NN1276AA gasket and C5NN9N283A twist lock are used. Instruction_Sheet_Fuel_Tank_Selector_Valve_001 The electrical and fuel systems should be connected to the valve as shown above (Figure 1). 1992-96 Ford F150 Truck Fuel Tank Selector Switch.

1984 Ford F250 No Fuel ?: Engine Performance Problem 1984 ...

1986 Ford F250 Fuel Pump Wiring Diagram - Wiring Diagram ... Fuel Pump Wiring Diagram Dual Tanks 1996 Ford F150 F250 F350 Fuel Pump Wiring Diagrams Where Is The Ground Wire Located At Part 1 1993 Fuel Pump Circuit Tests Ford 4 9l 5 0l 8l No Fuel To Carb Or Very Little Truck Starts If Installing Electronically Controlled Fuel Tank Selector Valve 1988 Ford F150 Truck Enthusiasts Forums

Fuel System Wiring

Fuel Selector Diagram Ford Tank Valve Wiring [973E6G] Universal Brand SMP 6 port motor driven; O. The IDI fuel system is comprised of one (or two) fuel tanks, fuel pickups, a selector valve, a lift pump, a fuel filter/water separator, injector pump, injector lines, and injectors. 6 PORT FUEL Gas Dual Tank Selector Valve Chevy Dodge Ford GMC Pickup Truck U7001 - $79.

ka 5409 fuel tank selector valve wiring diagram schematic ...

Ford e 350 need selector valve and dual tank wiring diagram… Need selector valve and dual tank wiring diagram for 1983 e-350 ford van.. need to find what wire powers this unit up - Answered by a verified Ford Mechanic. ... Where is the fuel tank selector valve on a 1992 Ford F150? Not the switch on the dash, I first replased it then rebuilt it. The stores are saying its the actual valve itself.

Fuel Pump Circuit Wiring Diagram (1993-1994 4.0L Ford Ranger)

1989 FORD F-350 7.3L 445cid V8 DIESEL Fuel Tank Selector ... FORD: 1989: F-350: 7.3L 445cid V8 DIESEL: Fuel & Air: Fuel Tank Selector Valve: ... FORD > 1989 > F-350 > 7.3L 445cid V8 DIESEL > Fuel & Air > Fuel Tank Selector Valve. Price: Alternate: No parts for vehicles in selected markets. STANDARD MOTOR PRODUCTS {#14029228, FV5T, FV-5} Universal; Verify port orientation and plug in image; May need ...

Ford F-250 Questions - where is fuel selector valve located ...

1986 FORD E350 WIRING FOR FUEL SELECTR VALVE - Fixya 239 Answers. SOURCE: where to get free download of audio wiring diagram. 1996 Ford Explorer Car Stereo Radio Wiring Diagram. Car Radio Constant 12v+ Wire: Green/Violet. Car Radio Switched 12v+ Wire: Yellow/Black. Car Radio Ground Wire: Black/Light Green. Car Radio Illumination Wire: Light Blue/Red. Car Stereo Dimmer Wire: N/A.

How to Install In-Tank Fuel Pump in 1985-1986 Ford F150/350 and 1989-1997 Ford Truck

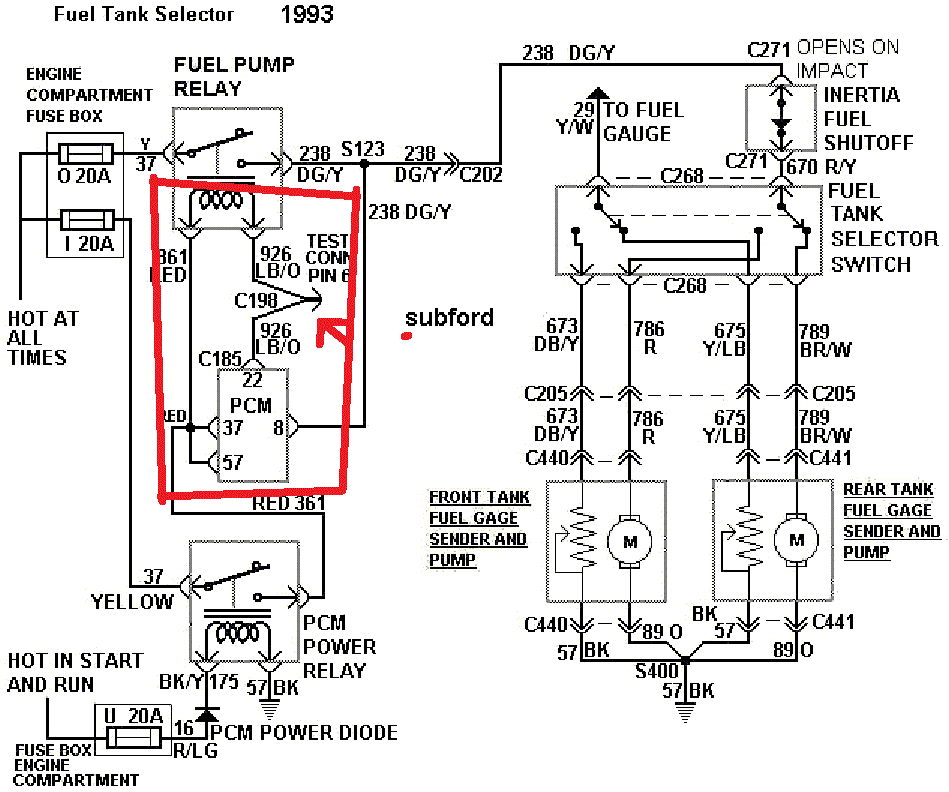

Fuel Pump Wiring Diagram (1993-1995 F150, F250, F350) 1993, 1994, 1995 (4.9L, 5.0L, 5.8L) Ford F150, F250, and F350 with dual fuel tanks. This fuel pump circuit wiring diagram includes the following circuits: Fuel Pump Relay. Fuel Pump Inertia Switch. Fuel Tank Selector Switch. Front Tank Fuel Pump. Rear Tank Fuel Pump.
