39 Au Sn Phase Diagram
Processing and Reliability Issues for Eutectic AuSn Solder ... Thinner layers minimize the diffusion distances for Au and Sn, and hence the time required to obtain the eutectic composition. The phase diagram also provides guidance regarding mechanical properties. All of the intermetallics on the Sn-rich side of the diagram are "line" compounds, with extremely limited solubility ranges. PDF Chapter 9: Phase Diagrams - Florida International University Phase Diagrams • Indicate phases as function of T, Co, and P. • For this course:-binary systems: just 2 components.-independent variables: T and Co (P = 1 atm is almost always used). • Phase Diagram for Cu-Ni system Adapted from Fig. 9.3(a), Callister 7e. (Fig. 9.3(a) is adapted from Phase Diagrams of Binary Nickel Alloys , P. Nash
Au_Sn alloy phase diagram and properties related to its ... Au_Sn alloy phase diagram and properties related to its use as a bonding medium

Au sn phase diagram
The Au Sn phase diagram - ScienceDirect The resulting proposed Au Sn phase diagram contains six intermetallic compounds and seven invariant reactions. Within the gold-rich region of the diagram there are four invariant reactions that occur: peritectics at 532 and 521 °C, a eutectic at 280 °C and a peritectoid at 190 °C, below which ζ ′ is stable. Eutectic system - Wikipedia In the Al-Au phase diagram, for example, it can be seen that only two of the phases melt congruently, AuAl 2 and Au 2 Al, while the rest peritectically decompose. Eutectic calculation. The composition and temperature of a eutectic can be calculated from enthalpy and entropy of fusion of each components. Au-Sn (Gold-Tin) - Journal of Phase ... - SpringerLink The Au-Sn phase diagram in [Massalski2] was modified by [ 1993Oka] around the \upbeta and \upzeta phase fields. These phases were shown in [Massalski2] to decompose eutectoidally at low temperatures, but [ 1993Ciu] showed that they do not decompose at least down to 200 °C.
Au sn phase diagram. PDF AUSN THIN FILM SOLDER LAYERS FOR ASSEMBLY OF ... - Hightec 1.2 Phase diagram and solder reactions The phase diagram of the binary Au-Sn sytem was first described by Vogel 1]. In the meanwhile several[ papers were published on his topic because of thet complexity of this system. Fig 1 shows the phase diagram published by Okamoto and Massalski [2]. The Au-Sn system has two eutectic points and four Au-Ni-Sn intermetallic phase relationships in eutectic Pb ... Recent work has shown that a Au-Ni-Sn ternary compound with a nominal composition of Au 0.5 Ni 0.5 Sn 4 redeposits and grows at the interface between eutectic Pb-Sn solder and Ni/Au metallization during aging at 150°C. The present work verifies the existence of the Au 0.5 Ni 0.5 Sn 4 phase by examining the Sn-rich corner of the Au-Ni-Sn ternary phase diagram. Au-Pt Phase Diagram and Database (GeDb for FactSage) Au-Pt Phase Diagram [2008Gro] Experimental Study of Au-Pt-Sn Phase Equilibria and Thermodynamic Assessment of the Au-Pt and Au-Pt-Sn Systems, V.Grolier, R.Schmid-Fetzer, J.Electron. Mater., 37 (2008) 264-278. Database for FactSage (registration required) Microstructural and Diffusion Analysis of Au-Sn Diffusion ... In the binary Au-Sn system, there are two eutectic compositions at Au-29%Sn (T eutectic = 553 K) and Au-95.4%Sn (T eutectic = 490 K). Au-Sn phase diagram is shown in Fig. 1. Two eutectic points are located in both tin-rich and gold-rich regions. For most conventional solder, the eutectic Au-Sn compositions are used in
AuSn20 Eutectic Electrodeposition through Alternative ... According to the Au−Sn thermodynamic phase diagram,7 the AuSn20 eutectic occurs at 20.0 wt % or 29.0 at. % Sn26 and consists of ζ phase (Au 5 Sn) and δ phase (AuSn). The lattice structures of ζ phase (Au 5 Sn) and δ phase (AuSn) are HCP and NiAs structure, respectively, as shown in Figure 1. Although the melting points of Au 5 Sn and AuSn ... Au - Sn phase diagram, adapted from Ciulik and Notis. 13 ... Due to the com- plexity of the Au - Sn phase diagram (compare Fig. 1) and the nature of competitive diffusion in the Au - Sn system, 29 it was necessary to prepare both an Au-rich and Sn-rich... Pb-Sn Phase Diagram & Computational Thermodynamics Alloy Phase Diagrams 9 (1988) 144-152. H. Ohtani, K. Okuda and K. Ishida, J. Phase Equilibria 16 (1995) 416-429. Calculated Invariant Equilibria. Reaction. Phase. Mass % Pb. Mass % Sn. L -> (Pb) + (Sn) 182.2 o C. The Au Sn phase diagram - 百度学术 The resulting proposed Au Sn phase diagram contains six intermetallic compounds and seven invariant reactions.Within the gold-rich region of the diagram there are four invariant reactions that occur: peritectics at 532 and 521 °C, a eutectic at 280 °C and a peritectoid at 190 °C, below which ζ′ is stable.
PDF Processing and Reliability Issues for Eutectic AuSn Solder ... Phase Diagram Many of the key issues associated with AuSn soldering can be ascertained from the binary phase diagram, shown in Figure 1. The most notable features are steep liquidus lines, particularly on the Au-rich side of the eutectic composition (71 at% Au/29 at% Sn, or 80Au-20Sn by weight), and the numerous intermetallic "line" Solved 5. For the Au-Sn phase diagram given below draw ... For the Au-Sn phase diagram given below draw schematics of plausible molar free energy curves showing the common tangent construction as a function of composition, Xsn, at Ti=350 °C (30 at.% PDF Au/Sn Solder Alloy and Its Applications in Electronics ... Figure 1: Au-Sn binary phase diagram (Au-rich side) [1]. The reaction L + at 280 °C provides the basis of the eutectic solder. The interesting phases for Au-Sn solder include; ' (Au 5 Sn), and (AuSn). The ' phase has a composition of 10.7 wt. % Sn and exists up to 190 C. It has a hexagonal structure. PDF Lecture 19: 11.23.05 Binary phase diagrams Lecture 19: 11.23.05 Binary phase diagrams ... Au Sn and one eutectoid reactions. AuSn AuSn4 AuSn2 1100 Atomic Percent Tin T (temperature) Phase diagram of Gold-Tin has seven distinct phases, three peritectics, two eutectics, Figure by MIT OCW. Lecture 19 - Binary phase diagrams 10 of 16
The Au−Sn (Gold-tin) system | SpringerLink 66Pri: A. Prince, "The AuSn−Pb Section of the Au−Pb−Sn Phase Diagram",J. Less-Common Met., 10(5), 365-368 (1966). (Equi Diagram; Experimental) MathSciNet Article Google Scholar ...

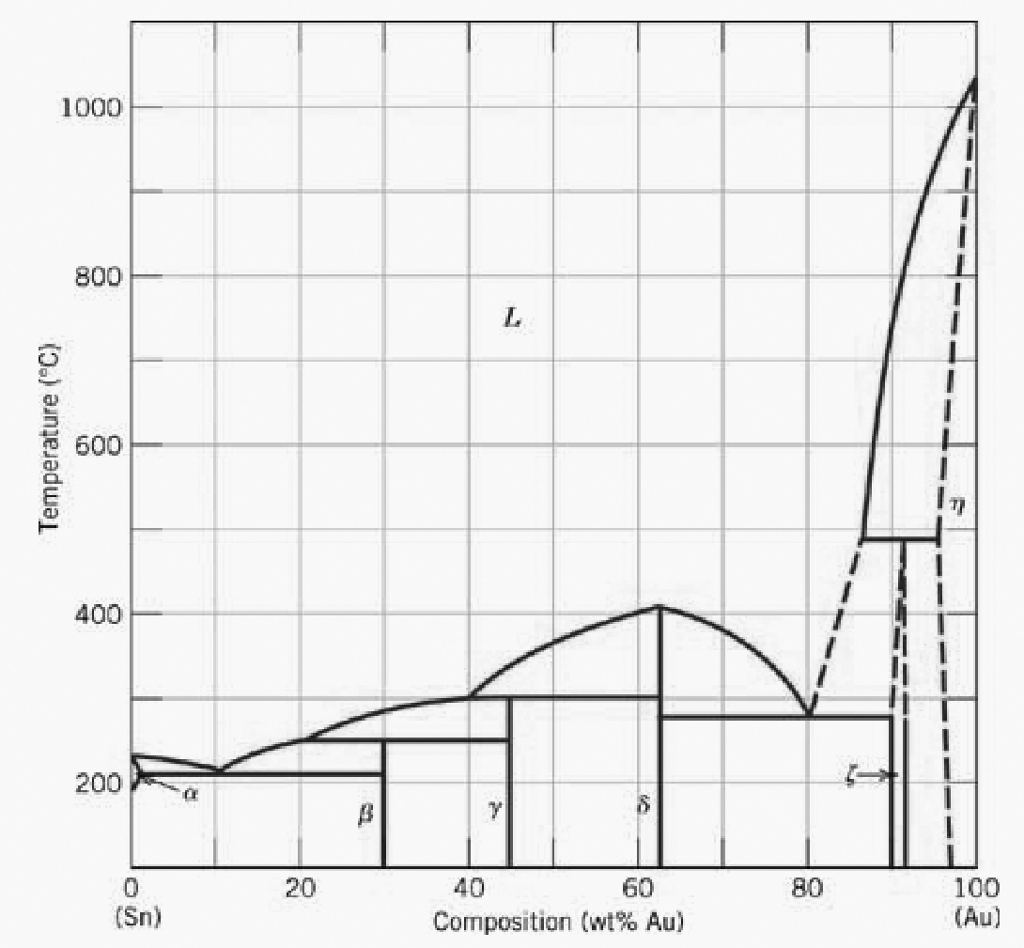

Solved Consider the Sn-Au phase diagram shown below. a If ... Transcribed image text: Consider the Sn-Au phase diagram shown below. a If a 50 wt% Au - 50 wt% Sn alloy is slowly cooled from 500°C, what is the first solid phase to form and what is its composition? b If a 70 wt%Au-30wt% Sn alloy is slowly cooled from 500°C to 200°C, what is the weight fraction of the Sn-rich phase at 200°C? c Identify all eutectic points and write the corresponding ...
PDF Sn-Au phase diagram Sn-Au phase diagram Explain the equilibrium solidification when the nominal composition of the alloy is 40 w-% Sn? Liquid with nominal composition down to 419 C First -crystals nucleate (T 419 C) More -phase solidifies until T= 309 C is reached. Liquid composition from liquidus and the amount of phases with lever rule. T = 309 C peritectic
The Au Sn phase diagram - ScienceDirect The resulting proposed Au Sn phase diagram contains six intermetallic compounds and seven invariant reactions. Within the gold-rich region of the diagram there are four invariant reactions that occur: peritectics at 532 and 521 °C, a eutectic at 280 °C and a peritectoid at 190 °C, below which ζ ′ is stable. The solubility range of tin in ...
Properties of Au-Sn alloy | Mitsubishi Materials ... Physical Properties. Particularly Au-20wt%Sn has excellent electricity and thermal conductivity. Au-20wt%Sn alloy and Au-22wt%Sn alloy are considered to have no big difference between in the physical properties mentioned above.
Phase diagram for Au- Sn system and illustration of the ... As demonstrated in the Au-Sn phase diagram, once the composition of the final Au-Sn product departs from the eutectic composition point (Au: 80 wt% and Sn: 20 wt%), the melting temperature of the ...
2.) Consider the Sn-Au phase diagram.a.) List all | Chegg.com Consider the Sn-Au phase diagram.a.) List all eutectic reactions.b.) List all eutectoid reactions.c.) If a 50 wt%Au-50wt% Sn alloy is slowly cooled from 500oC, what is the first solid phase to form and what is its composition? This question hasn't been solved yet Ask an expert Ask an expert Ask an expert done loading.
Phase Diagrams | Shuanglin Chen Phase Diagrams All the phase diagrams were calculated by Pandat. Ag Binary Phase Diagrams. Ag-Al Ag-Au Ag-B Ag-Bi Ag-Ca Ag-Ce Ag-Co Ag-Cr Ag-Cu Ag-Dy Ag-Er Ag-Fe Ag-Ga Ag-Gd Ag-Ge Ag-Hf Ag-Hg Ag-Ho Ag-In Ag-Ir Ag-La Ag-Mg Ag-Mo Ag-Na Ag-Nd Ag-Ni Ag-Os Ag-Pb Ag-Pd Ag-Pr Ag-Pt Ag-Rh Ag-Ru Ag-Sb Ag-Sc Ag-Si Ag-Sn Ag-Sr Ag-Tb Ag-Te Ag-Ti Ag-V Ag-W ...
All Phase Diagrams - Polytechnique Montréal Click on a system to display the phase diagram. (NH4)2SO4-H2O FTfrtz (NH4)2SO4-H2O_with_gas FTfrtz (NH4)2SO4-H2O-KNO3_100oC FTfrtz (NH4)2SO4-H2O-KNO3_125oC FTfrtz ... Ag-Au-Sn_377C SGnobl: Ag-Au-Sn_liquidus SGnobl: Ag-Au-Zn_liquidus SGnobl: Ag-B FTlite: Ag-B SGnobl. Ag-B SGTE 2014: Ag-B SGTE 2017: Ag-B SGTE 2020: Ag-Ba FSlead: Ag-Ba FTlite: Ag ...
AuSn phase diagram [6]. | Download Scientific Diagram The Au10Sn90 eutectic is known to be brittle. With increasing Au content the Au-richer intermetallic phases AuSn 2 and AuSn can be observed. The melting point of the Au-rich eutectic Au80Sn20 is ...
Au-Sn - Phase Diagram - Google Search Phase Diagram. このサイトを検索 ... Au-Sn. Data from RICT-Sol alloy database ver.1.0. Sign in | Recent Site Activity | Report Abuse | Print Page | Powered By Google Sites ...
Au-Sn (Gold-Tin) - Journal of Phase ... - SpringerLink The Au-Sn phase diagram in [Massalski2] was modified by [ 1993Oka] around the \upbeta and \upzeta phase fields. These phases were shown in [Massalski2] to decompose eutectoidally at low temperatures, but [ 1993Ciu] showed that they do not decompose at least down to 200 °C.
Eutectic system - Wikipedia In the Al-Au phase diagram, for example, it can be seen that only two of the phases melt congruently, AuAl 2 and Au 2 Al, while the rest peritectically decompose. Eutectic calculation. The composition and temperature of a eutectic can be calculated from enthalpy and entropy of fusion of each components.
The Au Sn phase diagram - ScienceDirect The resulting proposed Au Sn phase diagram contains six intermetallic compounds and seven invariant reactions. Within the gold-rich region of the diagram there are four invariant reactions that occur: peritectics at 532 and 521 °C, a eutectic at 280 °C and a peritectoid at 190 °C, below which ζ ′ is stable.
