Block diagram reduction rules

Hence for the reduction of a complicated block diagram into a simple one, a certain set of rules must be applied. Here in this section, we will discuss the rules needed to be followed. Rules for Block Diagram Reduction. So, one by one we will discuss the various rules that can be applied for simplifying a complex block diagram. Block Diagram • It represents the structure of a control system. • It helps to organize the variables and equations representing the control system. It is composed of: • boxes, that represents the components of the system including their causality; • Lines with arrows, that represent the actual Block diagram reduction rules Rule No.1. Blocks in Cascade When two or more blocks are connected in series, then the resultant block is the product of the individual blocks. Rule No.2 Blocks in parallel When two or more blocks are connected in parallel, then the resultant block is the sum of the individual blocks.

Block diagram reduction rules. September 11, 2014 - Block Diagram Simplification - Rules & Equivalents - Process Control Solved Problems - msubbu · Block Diagram Simplification - Rules & Equivalents Control Systems: Block Diagrams Reduction RulesTopics Discussed:1. Shifting of Take-off Point before an Adder.2. Shifting of Take-off Point after an Adder.3.... This video illustrates various block diagram reduction rules required to obtain transfer function from a given block diagram. Learn all the block diagram reduction rules just by watching this one simple video.Two Critical Laws Explanation (Please watch video along with this descript...

Let us simplify (reduce) this block diagram using the block diagram reduction rules. Step 1 − Use Rule 1 for blocks G 1 and G 2. Use Rule 2 for blocks G 3 and G 4. The modified block diagram is shown in the following figure. Step 2 − Use Rule 3 for blocks G 1 G 2 and H 1. Use Rule 4 for shifting take-off point after the block G 5. Rules for Block Diagram Reduction - Digital Electronics Download Now Download. Download to read offline. Education. Aug. 12, 2017 3,822 views This document contains the detailed note on how to reduce the block diagram with some defined steps.It also contains an example for the better conceptualization of this topic. 2.1 Rules for Block Diagram Reduction: Now the following block diagram algebra is often used to describe rules for reduction: Rule 1: Blocks in cascade Two or more blocks in cascade may be combined in one block. Rule 2: Combining Blocks in Parallel Two blocks or more in parallel may be combined in one block as the algebraic sum. X(G 1 (s) G X(s ... Rules for Block Diagram Reduction. Any complex block diagram representing a system can be reduced to a simple block diagram for determining the transfer function by applying certain rules. The rules that can be used in simplifying the given complex block diagram are as explained below.

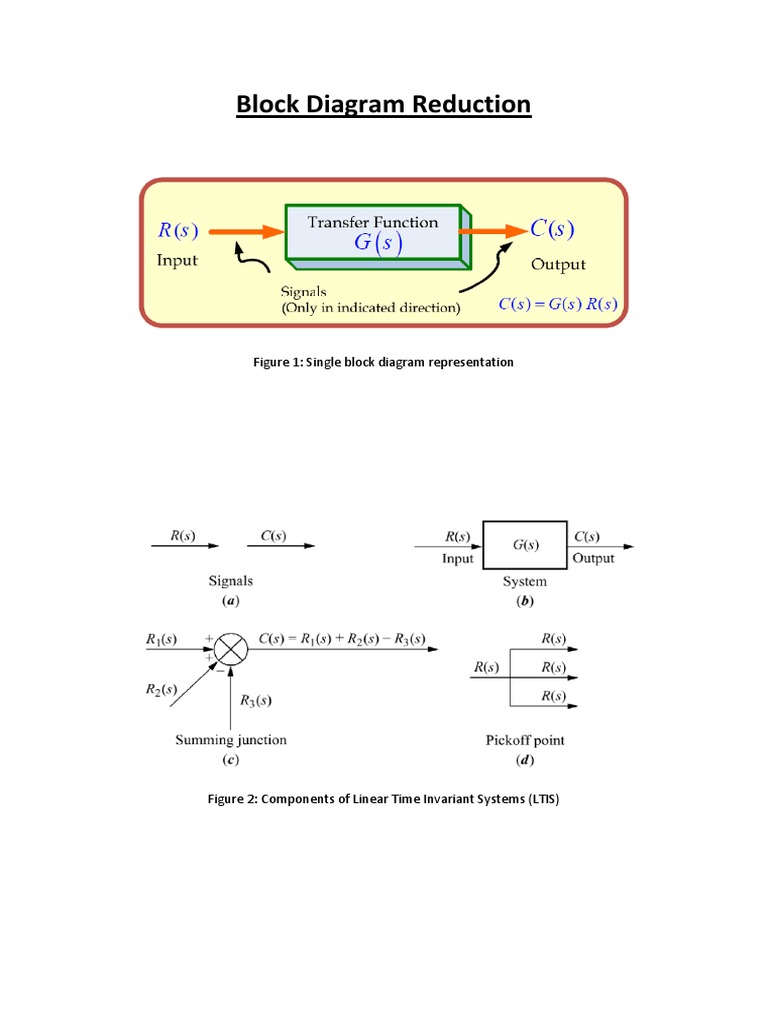

Control Systems: Block Diagrams Reduction RulesTopics discussed:1. Representation of a closed-loop system.2. Reduction rule when the blocks are connected in ... Block Diagram Reduction Figure 1: Single block diagram representation Figure 2: Components of Linear Time Invariant Systems (LTIS) Block Diagram Reduction W.3 4Mason™s Rule and the Signal-Flow Graph A compact alternative notation to the block diagram is given by the signal-⁄ow graph introduced Signal-⁄ow by S. J. Mason (1953, 1956). As with the block diagram, the signal-⁄ow graph o⁄ers a visual tool for graph Rules for block diagram reduction techniques Block Diagram Reduction Technique: A block diagram is a diagrammatic representation of the cause-and-effect relationship between the input and output of a physical system represented by the flow of signals. Block Diagram Reduction Technique gives the relationship that exists between various ...

June 18, 2020 - Here you will learn about block diagram reduction technique to reduce any complex block diagram. Also learn about the shortcut rules and steps for the same .

Block diagram reduction technique . Because of their simplicity and versatility, block diagrams are often used by control engineers to describe all types of systems. A block diagram can be used simply to represent the composition and interconnection of a system.

March 28, 2021 - The technique of combining of these blocks is referred to as block diagram reduction technique. For successful implementation of this technique, some rules for block diagram reduction to be followed. Let us discuss these rules, one by one for reduction of control system block diagram.

In this lecture we look at block diagram reduction using rules. In addition to illustrating the steps, we work out one complex example.

Block Diagram Reduction Rules - Casacde, Parallel, Moving Pickoff, Summing PointsFor Students of B.Tech, B.E, MCA, BCA, B.Sc., M.Sc., Courses - As Per IP Uni...

Block Diagram Reduction techniques 2G1G 21GG 2. Moving a summing point behind a block G G G 1G 2G 21 GG + 1. Combining blocks which are in cascade or in parallel. 5. 5. Moving a pickoff point ahead of a block G G G G G 1 G 3. Moving a summing point ahead of a block G G G 1 4. Moving a pickoff point behind a block.

Block Diagram Reduction watch more videos at https://www.tutorialspoint.com/videotutorials/index.htm Lecture By: Mrs. Gowthami Swarna, Tutorials Point India

Consider the block diagram shown in the following figure. Let us simplify (reduce) this block diagram using the block diagram reduction rules. Reduction. all steps for block diagram reduction for a complex block diagram. Eliminate loop I & simplify as GGG + B 1G 2H)(sY 4G 2G 1H AB 3G. Visual algebra: use block diagram manipulation instead of ...
