December 16, 2020 by admin. 1967 Ford 289 Firing Order - It's essential to know which lender (or cylinder Top) is number 1 to help you figure out a starting point for firing order or just to exchange the proper portion, like an Oxygen indicator, fuel injector or ignition coil. In the past all that was needed to find out which bank or ... Need firing order diagram 68 289 ford. Includes distributor rotation and wire locations. And just to verify, the firing order is . Just now yes, as you stand in front of the car, the #1 cylinder is the first one on the left, just like your diagram. Firing order decal fits dodge chrysler small block 273 318 340 360 v8 engine.

The firing order for Ford Mustang GT350 5.2L "Voodoo" V8 with flatplane crankshaft is 1-5-4-8-3-7-2-6. Why The Firing Order Is Important The correct firing order is very important because mixing up the spark plug wires may prevent the engine from starting, cause it to backfire and run very poorly if at all.

Ford 289 firing order diagram

So this is the firing order for later model 5.0L Ford Engines. The older 260-302's use a different firing order but many aftermarket camshafts for older Fords often are the newer 302 HO/351W order. Just double check with your cam grinder or pull the valve covers find top dead center and start watching valves, you should be able to figure it out! Ford Truck Technical Drawings And Schematics Section I Electrical Wiring. Ford truck enthusiasts 1975 mustang 302 no wires on my coil so wiring diagram 4 electronic ignition diagrams hei distributor spark plug 86 5 0 help stangnet boss 2018 260 289 firing order alternator 3 system 1994 circuit duraspark ii the v 8 engine wire shamrock boat owners fuel pump 1993 1995 faq info 0l injection ... I have a 67 mustang w/8 cyl, 289, I need firing order diagram? Ford Mustang Cars & Trucks; Open Questions: 0 answers. looking for ford diagrams of the vacuum system vaccuum lines for a holly 4 barrel on a 289. Read full answer. Be the first to answer Sep 03, 2014 • 1966 Ford Mustang.

Ford 289 firing order diagram. Hello.:welcome Actually, if you number the cylinders the same as a chevy, the firing order is the same. Fords are numbered from front back on the passenger side as 1 through 4 and from front to back on the driver's side 5 through 8. The firing order is 1-5-4-2-6-3-7-8. Hope that helps. Come to think of it, here's a diagram of that. They use a standard (clockwise) rotation water pump and front cover. 5.0L Truck (except Explorer) These engines are similar to the Full Size Car engines, except they use different intake manifolds and camshaft profiles. They also use the 289-302 firing order, 1-5-4-2-6-3-7-8. They also began using roller cams sometime in the early 1990s. Again this is OK as long as the firing order for the engine is maintained and you check your engines timing. So if you want to cut and paste the Firing Order for the Ford 429 and 460 it is : 1-5-4-2-6-3-7-8 (Same as old school 260, 289, 302 and most other Ford V8's) Firing Order. 1-3-7-2-6-5-4-8; Distributor Rotation. Counter-Clockwise; Answer ID 4973 ... What's the difference between a 302 and a 351W? What is my engine's firing order? Which Ford V8 do I have? What's the difference between a Cleveland and a Modified engine? Small Block Ford Casting Numbers ; Print. Email this page. Recipient Email ...

1,188 Answers. Re: Firing order diagram for a 289 motor. Firing Order: 1-5-4-2-6-3-7-8. Distributor Rotates Counter-Clockwise. Posted on Aug 10, 2010. Helpful 11. Ford 302 Firing Order. The firing order of a Ford 302 engine depends on its model year. Newer HO engines have a 1-3-7-2-6-5-4-8 firing order. Older models have a 1-5-4-2-6-3-7-8 firing order. Ford 292 Firing Order Diagram. October 24, 2020. September 10, 2020 by admin. Ford 292 Firing Order Diagram - It's crucial that you know which financial institution (or cylinder Top) is number 1 to assist figure out a starting point for firing order or maybe to switch the correct component, as an Oxygen sensor, energy injector or ignition ... Ford 260, 289 and 302 Firing Order Here is a large firing order for the old school Ford 260, 289 and 302. This is different the the later model 302HO and 351W motors. Note that many aftermarket camshafts for older fords often are of the newer 302HO/351W order.

Firing Order. 1-5-4-8-6-3-7-2; Distributor Rotation. Counter-Clockwise; Answer ID 4980 ... Yes No. Answers others found helpful. What is my engine's firing order? Ford V-8 Casting Numbers ; Which Ford V8 do I have? How do I set my valve lash? What's the difference between a Cleveland and a Modified engine? Print. Email this page ... Ford 289 Firing Order Diagram. 10.02.2019 10.02.2019 6 Comments on Ford 289 Firing Order Diagram. firing order for all ford mustang from from 6 cylinder to small and big block v8. At this site you can find the firing order for most Ford engines. This EZ to read firing order for the Ford HO and W engines. 1966 Ford 289 Firing Order. October 24, 2020. September 8, 2020 by admin. 1966 Ford 289 Firing Order - It's crucial that you know which financial institution (or cylinder Top) is primary to assist determine a beginning point for firing order or simply to change the appropriate component, like an Oxygen sensing unit, energy injector or ... Diagram] Ford Mustang 289 Engine Diagram 1966 Full Version is free HD wallpaper. This wallpaper was uploaded at October 24, 2020 upload by admin in Diagram . 1968 Ford 289 Firing Order - It's essential to know which lender (or cylinder Top) is # 1 to help decide a starting place for firing order or simply to switch the right portion, just like ...

Ford Explorer XLS. Ford F-150. Diagram of ford 1965. 289 firing order? Wiki User. ∙ 2012-10-21 20:16:16. Study now. See Answer. Best Answer. Copy. Diagram of ford 1965 289 engine.

firing order animation of ford 289 and 302 v8. 1-5-4-2-6-3-7-8 please check your particular engines firing order in owners manual or service manual.289 1-5-4...

SOURCE: I need firing order diagram for a 1993 F150 5.0 2wd please do not forget to rate and comment about your experience with fixya today. 5.0L and 7.5L engines Firing order: 1-5-4-2-6-3-7-8 Distributor rotation: Counterclockwise. Posted on Apr 17, 2009

Ford Firing Order . All 6 cylinder 1-5-3-6-2-4 ALL V8 1-5-4-2-6-3-7-8 Expect 351 and 400 v8. 351 and 400 V8 1-3-7-2-6-5-4-8

Ford 289 Firing Order. Ford 289 Firing Order - It's essential to know which financial institution (or cylinder Top) is # 1 to assist establish a starting point for firing order or just to exchange the appropriate aspect, like an Oxygen detector, energy injector or ignition coil. Previously all that was necessary to find out which banking ...

There are only 2 firing orders for the SBF- 1-5-4-2-6-3-7-8 (early 289/302) and 1-3-7-2-6-5-4-8 (5.0 and 351W). The firing order is determined by the camshaft. If you put a 5.0 or 351W cam in a 289 you have to change the plug wires in the cap to match the firing order. Just to confirm- cylinders 1-4 are on the passenger side of the engine front ...

Ford firing orderMy IG: 13b_dorito Here is some useful links for tools that you need to get this job done and that you will need on any other projects you mi...

Ford 289 Firing Order Diagram. firing order for all ford mustang from from 6 cylinder to small and big block v8. Seeing the diagram and remembering when I was into this 30+ years The / W firing order is the same firing order as a flat head Ford. This EZ to read firing order for the Ford HO and W engines.

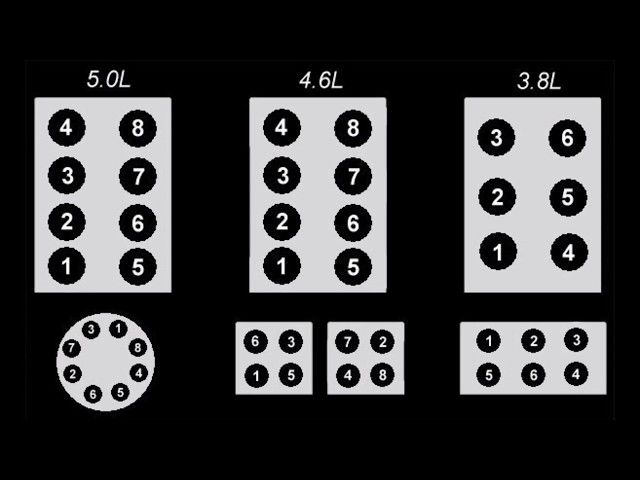

Ford 302HO / 5.0L and 351W Firing Order I was getting tired of finding crappy and tiny looking firing order diagrams so came up with this one. It's LARGE and easy to read even on a phones browser. Nothing magical just easy to read and convenient for me since I know my own sites address.

Ford first introduced the 289 V8 engine in 1963 and it was the third engine to appear in the popular Windsor line. The 289 was the most famous and highly desire engine used in the popular Ford Mustang built before 1968. (Unless you want to embarrass yourself by admitting you wanted a 200 Inline 6.). It was also used in the Ford Falcon and some ...

SOURCE: need spark plug wiring diagram for 1965 ford. Try this. If the distributor is in the right way, the clips that hold the cap on should be just a hair off of 12 o'clock and 6 o'clock. #1 is positioned at 1 o'clock, which is at the firewall side of the distributor. The firing order is 1-5-4-2-6-3-7-8and is counterclockwise from #1.

I have a 67 mustang w/8 cyl, 289, I need firing order diagram? Ford Mustang Cars & Trucks; Open Questions: 0 answers. looking for ford diagrams of the vacuum system vaccuum lines for a holly 4 barrel on a 289. Read full answer. Be the first to answer Sep 03, 2014 • 1966 Ford Mustang.

Ford Truck Technical Drawings And Schematics Section I Electrical Wiring. Ford truck enthusiasts 1975 mustang 302 no wires on my coil so wiring diagram 4 electronic ignition diagrams hei distributor spark plug 86 5 0 help stangnet boss 2018 260 289 firing order alternator 3 system 1994 circuit duraspark ii the v 8 engine wire shamrock boat owners fuel pump 1993 1995 faq info 0l injection ...

So this is the firing order for later model 5.0L Ford Engines. The older 260-302's use a different firing order but many aftermarket camshafts for older Fords often are the newer 302 HO/351W order. Just double check with your cam grinder or pull the valve covers find top dead center and start watching valves, you should be able to figure it out!
