There is only two pullies where the drive belt is smooth side down and that would be the idler pulley right next to the alternator which is the middle pulley up top in the diagram and the tensioner pulley in the middle of the diagram where the belt makes the sharpest turn. Just wrap it around the outside of all the others with the groove side ... We are proud to have the ability to make vehicle specific belt routing diagrams available for free. Follow the guide for serpentine belt routing diagrams. This will open up to the index. Scroll down to find your vehicle manufacturer. Then scroll to the page the index refers to. Select the specific year and make of your vehicle.

That picture (Solved: I Need A Diagram For A Serpentine Belt On A 96 - Fixya pertaining to 2005 Ford Focus Engine Diagram) earlier mentioned will be branded with: 2005 ford focus 1.6 tdci engine diagram, 2005 ford focus engine diagram, 2005 ford focus engine diagram 4 cyl, . posted by admin at June, 12 2015.

2005 ford focus serpentine belt diagram

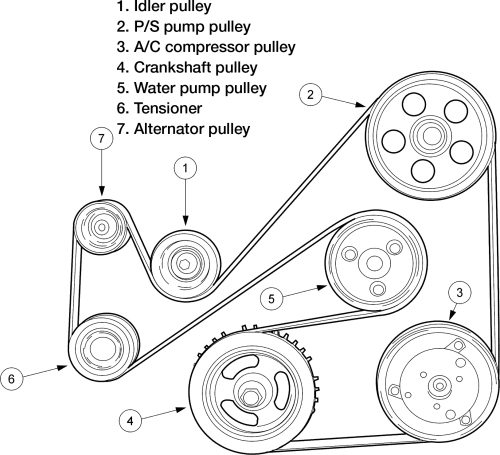

2000-2005 Ford Focus 2.0L. *more diagrams below. Removal: With the vehicle in Park and turned off, remove the splash shield to gain access to the tensioner. Rotate the tensioner pulley clockwise to release tension on the belt. Remove the belt from the easiest pulley to access and slowly release the tensioner pulley. Installation: Amen to that. Our '01 ZX3 had a diagram-sticker for the serpentine belt affixed to the underside of the hood. Our new '05 has no diagram-sticker for the belt, nor does the hood have a pad that absorbs heat/deadens sound, which the '01 also had as standard equipment. From the looks of things on this new Focus, I'd say the bean counters at Ford ... Ford Focus. Select the year of your Ford Focus to view belt diagrams. 2000. 2001. 2002. 2003.

2005 ford focus serpentine belt diagram. Serpentine and Timing Belt Diagrams. Contact • Help • serpentine belt diagram. If you need serpentine belt diagram. then suitable serpentine belt diagram you will be able to find on our site. very wide choice serpentine belt diagram for the enormous amount of models of cars. printing format serpentine belt diagram. a site has a comfortable navigation. I need daigram of 2001 Ford focus se serpentine belt. You can find a schematic for the serpentine belt on a 2000 Ford Focus 2.0L SOHC motor without A/C in the owner's manual. This diagram fits the 2000-2005 Ford Focus with the 2.0 liter engine. The diagram shows routing for engines with and without AC. ... 2006 Chevy Impala Serpentine Belt Diagram-3.4L Engine. January 05, 2013 . 2001-2005 Cavalier and Sunfire. February 05, 2012 . 2001-2005 Century, Grand Prix, Impala, Intrigue, Lumina, Monte Carlo, Regal ...

1,844 satisfied customers. 2005 Ford Focus ZX5: fuel pump..engine turns..smell gas..timing belt. Hi there 2005 Ford Focus ZX5 40000 miles will not start this morning fuel pump comes on engine turns over but does not want to start. You can smell gas it almost starts but does not seems like timing … read more. 2005 Nissan Frontier Serpentine Belt Diagram Awesome ] Saab Bolt Hfh M10x1 5×35 32thd 22 3. how to replace serpentine drive belt cars and trucks view picture or diagram of 3800 v6 serpentine belt routing so you can replace it yourself. 2001 ford Focus Belt Diagram Fresh 2000 Gmc Safari Engine Diagram within Gmc Wiring and Engine. 2005 ford focus serpentine belt diagrams 2005 ford focus serpentine belt diagrams. Focus 2005 automobile pdf manual download. Check here for special coupons and promotions. View and download ford focus 2005 owners manual online. 2005 ford focus electrical wiring diagrams original factory manual. SOURCE: I need serpentine belt diagram for 2005 ford focus IF YOU GO TO ANY AUTO PARTS THEY WILL BE MORE THEM GLAD TO GIVE YOU THAT INFO. AUTO ZONE WILL DO THAT FOR YOU. Posted on Nov 04, 2009

This is a step by step video tutorial on how to replace the serpentine belt on a North American Ford Focus 2.0L between the years of 2005-2007. How to Jack u... > THE DIAGRAMS FOR THE BELT ON A 3.O WITH DUAL AIR. I HAVE THE BELT ON > THE AIR, ALT, THE TENSIONER, THE ENGINE CRANK ,THE OTHER BELT IS STILL ... Jeff Aug 17, 2005. Ford Forums. Ford Forum is a community to discuss all things Ford. Check out our discussions on the Ford Escape, Mustang, Edge, F-150, Raptor, Explorer, Focus, Fusion, Fiesta and ... Step by step replacement of a Serpentine belt on a 2005 Ford Focus.Amazon Associate Links:As an Amazon Associate I earn from qualifying purchases:Bando Serpe... 2005 Ford Focus Serpentine Belt Diagrams 2005 Ford Focus Serpentine Belt Diagrams. The serpentine belt diagram, belts, tensioners, idlers and idler pulleys listed below are from GATES and they shows the serpentine belt routing for the year, make, model, engine shown. There's lots more information on this site for your Ford vehicle.

2001 Ford Focus Serpentine Belt Routing And Timing Belt Diagrams

How to Replace the Serpentine Belt in a Ford Focus. The Ford Focus generally has a dedicated drive belt, sometimes called the serpentine belt, that drives the alternator, power steering, and air conditioning compressor. Ford recommends checking this belt every 6,000 miles or 6 months for possible replacement.
