Image distance, v = - 10 cm [Concave lens forms virtual image on same side as the object, so v is - ve] As, Object distance, u = -30 cm. Ans. Drawing the ray diagram: Using a scale of 1: 5, we get v = - 2 cm, f = - 3 cm. We draw the ray diagram as follows: Concave lens ray diagram class 10 The light is reflected by a mirror. The light crosses, and is refracted by, a lens. The lenses have two focal points, one on both sides of the target. A concave mirror converges light at a focal point. For lenses, light converges to a point for a convex lens. A convex mirror diverges the light, as well as a ... CBSE board physics summary videos. Convex/Concave - lenses & mirrors: CBSE board practice. This is the currently selected item. Human eye: CBSE board practice. Electricity class 10 numerical: CBSE board practice. Magnetic effects of electric current: CBSE board practice. Next lesson.

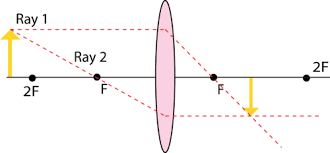

Concave lens ray diagram class 10. Best Explanation for Ray diagrams for the concave lens and Drawing concave lens with the help of a compass. Convex Lenses. When an object is placed at infinity, the real image is formed at the focus. The size of the image is much smaller than that of the object. When an object is placed behind the center of curvature, the real image is formed between the center of curvature and focus. The size of the image is the same as compared to that of the object. Here in this post, you will get Ray Diagrams for Images formed by convex & concave lenses as a Quick Reference. Image formation by lenses is an interesting topic of the Light chapter. Here along with the ray diagram, you will get the related details like Object position, image position, and nature of the image. Here, Object AB is beyond 2F 1. First, we draw a ray parallel to principal axis. So, it passes through focus after refraction. We draw another ray which passes through Optical Center. So, the ray will go through without any deviation. Where both rays meet is point A'. And the image formed is A'B'. This image is formed between F 2 and 2F 2.

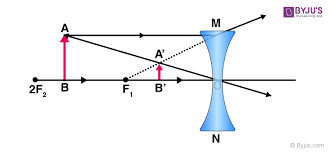

In this video, we have discussed ray diagrams of convex and concave lenses with tips and tricks for class 10 Light Reflection and refraction. Refraction of l... Application of Concave Mirror. (1) Reflectors (head light, torch, search light) (2) Shaving and make up mirrors. (3) Solar cookers (when parallel beam of sunlight fall on mirror,it is brought to focus.As a result temperature increases and hence food is cooked) (4) ENT specialist uses spherical mirror. Ray diagram through the convex lens: Concave Lens Ray Diagram Class 10; CBSE Class 10 Science Lab Manual Experiment 7. Convex Lens Experiment Class 10. Aim To find the image distance for varying object distances in case of a convex lens and draw corresponding ray diagrams to show the nature of image formed. Theory. Lens: It is a piece of a ... The ray diagram above illustrates that the image of an object in front of a double concave lens will be located at a position behind the double concave lens. Furthermore, the image will be upright, reduced in size (smaller than the object), and virtual. This is the type of information that we wish to obtain from a ray diagram.

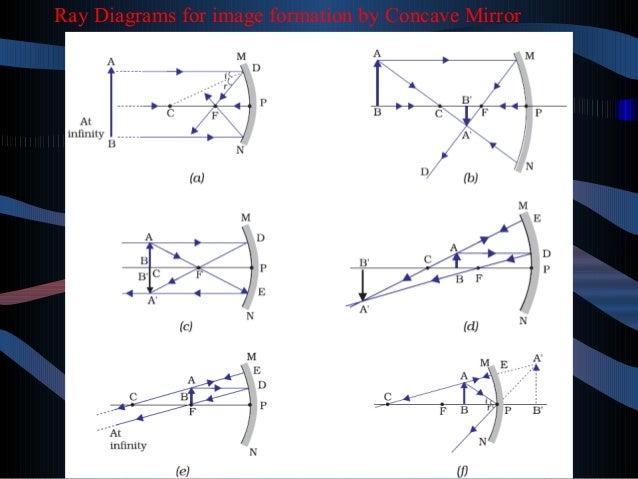

NCERT Rules Ray Diagram Science Chapter Class 10 Rules for obtaining ray diagram formed by convex mirror. A ray incident parallel to the principal axis of a convex mirror after reflection will appear to comefrom the focus. A ray directed towards the focus of a convex mirror after reflection will become parallel to the principal axis. A ray ... From the point of view of the class 10th board, this topic of a spherical mirror is very important. If you know how to draw a ray diagram for concave and convex mirrors, you will be able to create an image. I hope you will understand the given notes of the image formation by concave and convex mirrors. But still, if there is any doubt related ... NCERT Solutions For Class 10. NCERT Solutions for Class 10 Social Science; NCERT Solutions for Class 10 Maths. ... Concave Mirror Ray Diagram. Concave Mirror Ray Diagram lets us understand that, when an object is placed at infinity, a real image is formed at the focus. The size of the image is much smaller compared to that of the object. CBSE Class 10 Science Chapter 10 Light - Reflection and Refraction Notes Ray Diagrams For Images Formed by Concave Mirror (i) When object is at infinity Image Position - At 'F' Nature of image - Real, inverted Size - Point sized or highly diminished (ii) When object is beyond 'C' Image Position - Between 'F' and 'C'

Physics Class 10- Ray diagrams of concave lens - YouTube

Ray Diagrams for Concave Lenses. The ray diagrams for concave lenses inside and outside the focal point give similar results: an erect virtual image smaller than the object. The image is always formed inside the focal length of the lens.

Light reflection and refaraction

Draw ray diagram to justify this statement stating the position of the object with respect to the lens in each case. An object of height 4 cm is placed at a distance of 20 cm from a concave lens of focal length 10 cm. Use lens formula to determine the position of the image formed. (Delhi 2015) Answer:

$Class 10 Science Chapter 10 Light - Reflection and Refraction Notes$

Class 10 Science Chapter 10 Light - Reflection and Refraction Notes

In a ray diagram, a convex lens is drawn as a vertical line with outward facing arrows to indicate the shape of the lens. The distance from the lens to the ...

Concave and Convex Mirrors | Ray Diagram for Convex and Concave Mirror

Home Science Lens NCERT Lens Science Chapter Class 10 Note. A transparent material bound by two surfaces, of which one or both surfaces are spherical. Convex lens: It is a lens which is thicker at the center and thicker at the edges. Concave lens: It is a lens which is thicker at the center and thicker at the edges. Terms related to a lens:

person holding black dslr camera

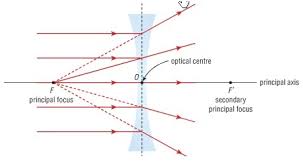

Image formation by concave lens: There are certain rules which are followed in making ray diagrams of image formed by concave lens in the chapter of light reflection and refraction for class 10. They are: When incident ray of light is parallel to the principal axis appear to diverge from a single point i.e focus on the same side of the lens.

RULES AND RAY DIAGRAMS (CONVEX AND CONCAVE LENSES) CLASS ...

(c) A convex lens of focal length 25 cm and a concave lens of focal length 10 cm are placed in close contact with each other. Calculate the lens power of this combination. [All India] Answer. 57. (а) Draw a ray diagram to show the formation of image of an object placed between infinity and the optical centre of a concave lens.

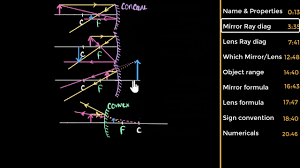

Convex/Concave - lenses & mirrors: CBSE board practice (video) | Khan Academy

Ray Diagrams of Mirrors and Lenses: Visit Chapter-wise Courses for Preparation: https://vdnt.in/3fLy7Biology CBSE Class 10: https://bit.ly/2LRMwFFChemistry C...

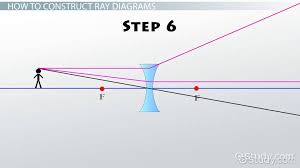

Method for drawing ray diagrams – Concave lens
